Industrial warehouse

The building is a duo-pitch portal frame with hipped roof on one side, furnished with cold rolled purlins and side rails for.
  • dimensions: app. 45 x 30m wide and 9.5m -height to the apex
  • primary steelwork: app. 40 tonnes
  • cold rolled purlines and side rails: 7.5 tonnes

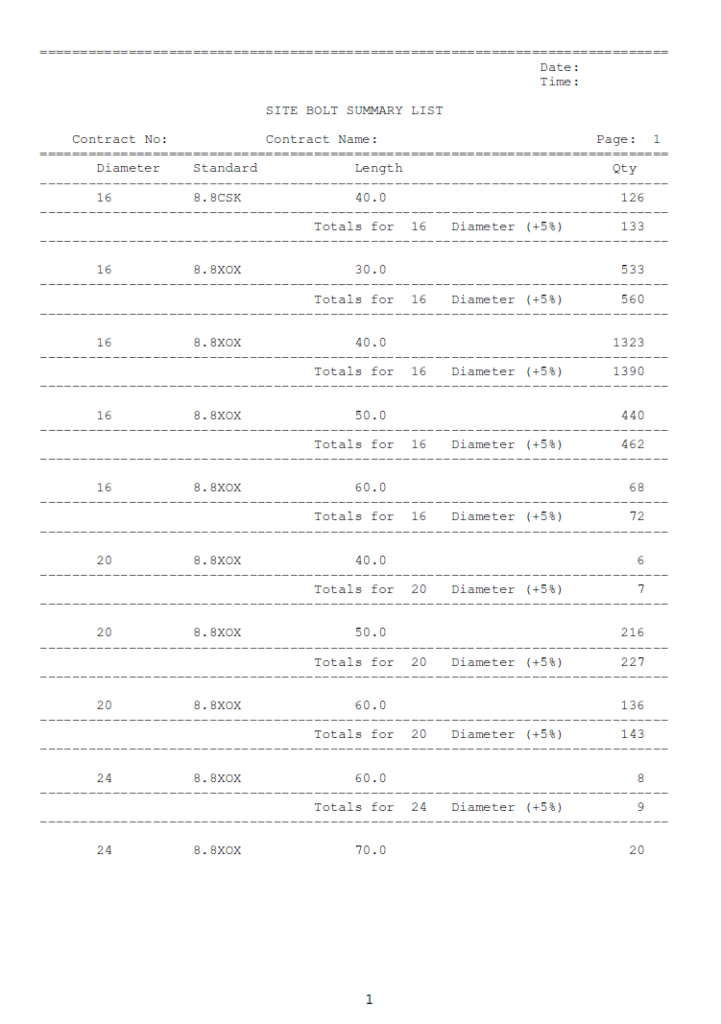

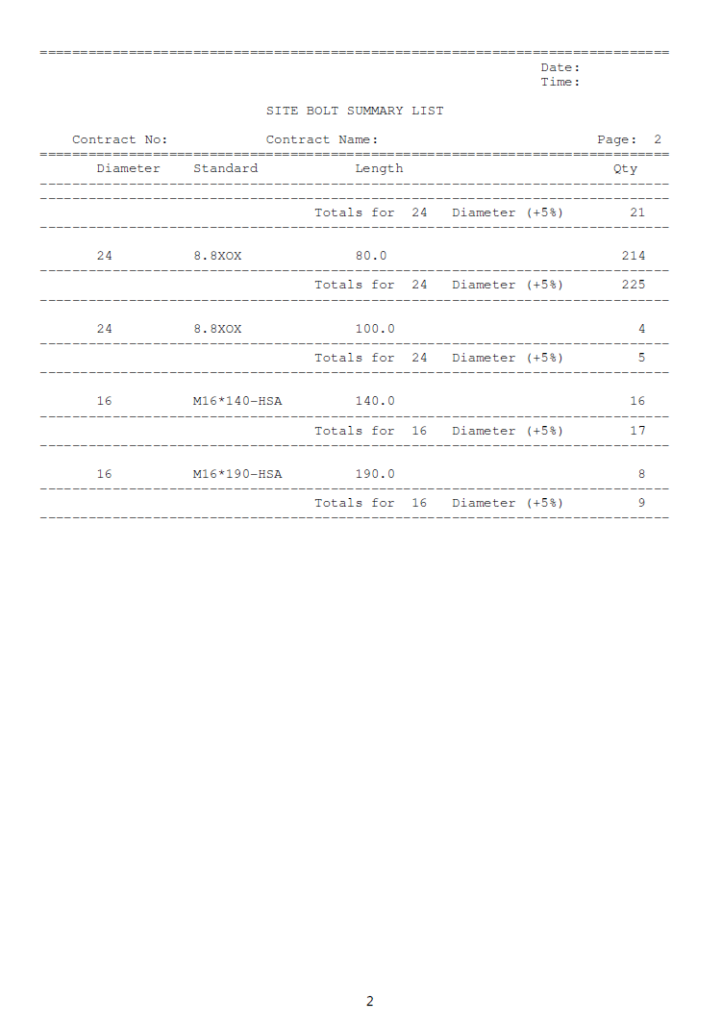

  • bolts used: 4200#
