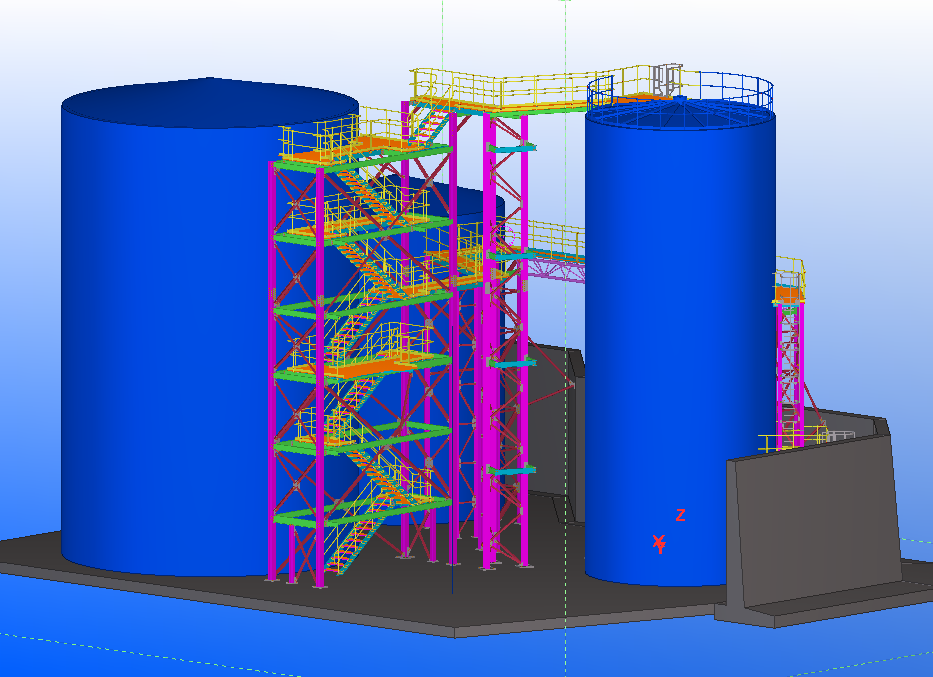

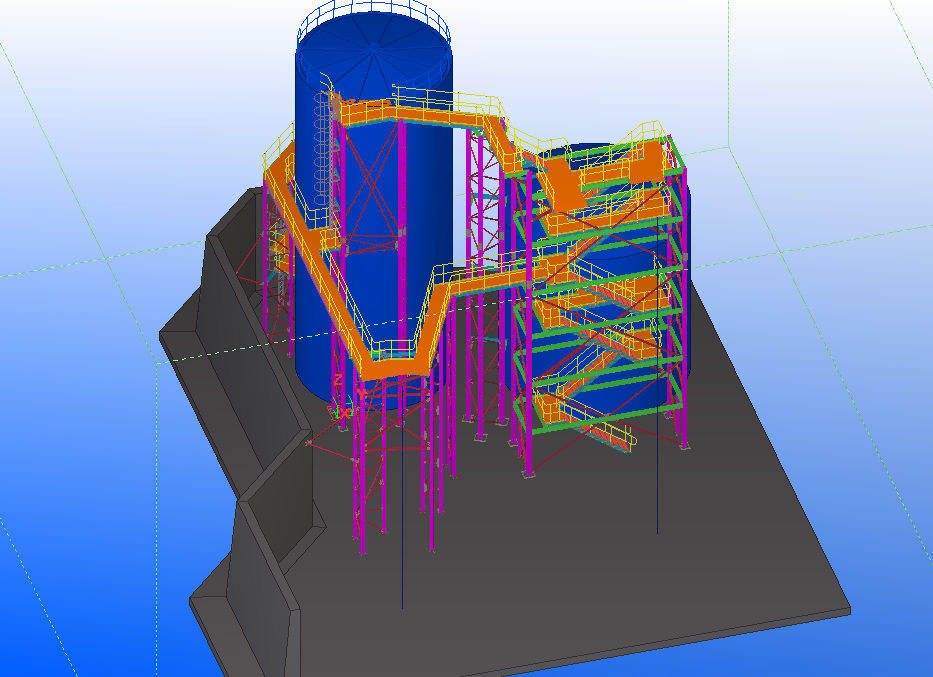

Here are shown walkways and platforms providing access for a complex of tanks and siloses. The platforms are on various levels and the total height of the structure is app. 30m. A full set of the stairs and ladders finished off the project. It is worth noting that a nearly 18m long fully welded truss were employed to bridge the platforms above building underneath.
dimensions: app. 30m high, plan dims varies.
total weight (steelwork+open mesh flooring+handrails+ladders): app. 36.5 tonnes
