We are an experienced company providing structural / steel detailing uk services mostly for Steelwork and Metalwork Fabricators but can also be of use for Architects and Structural ngineers/Consultants.

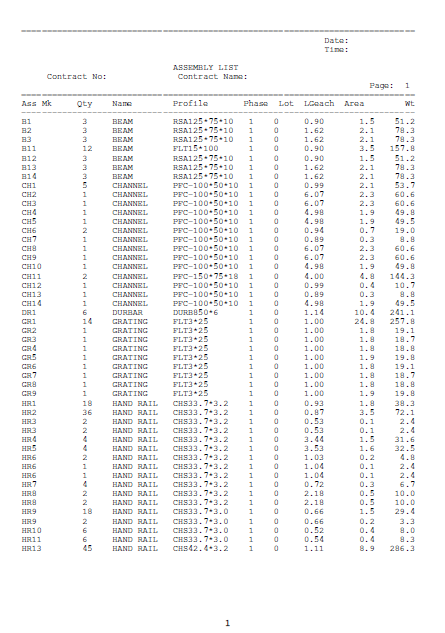

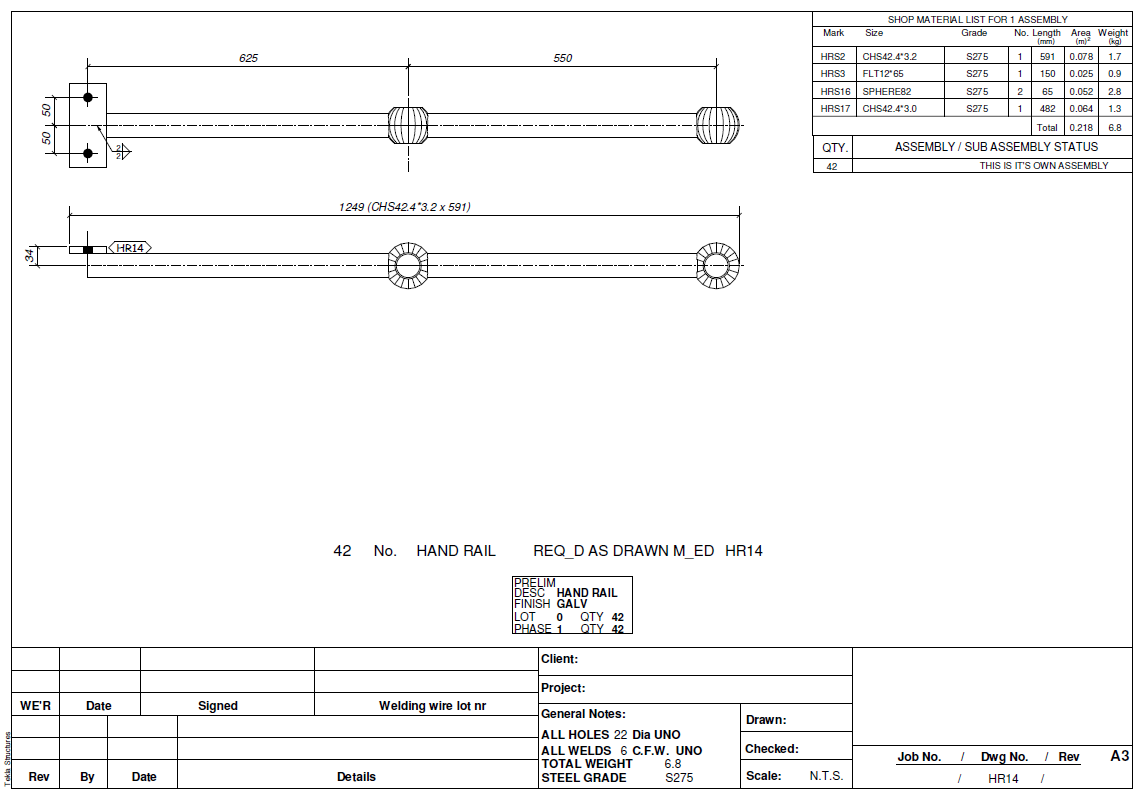

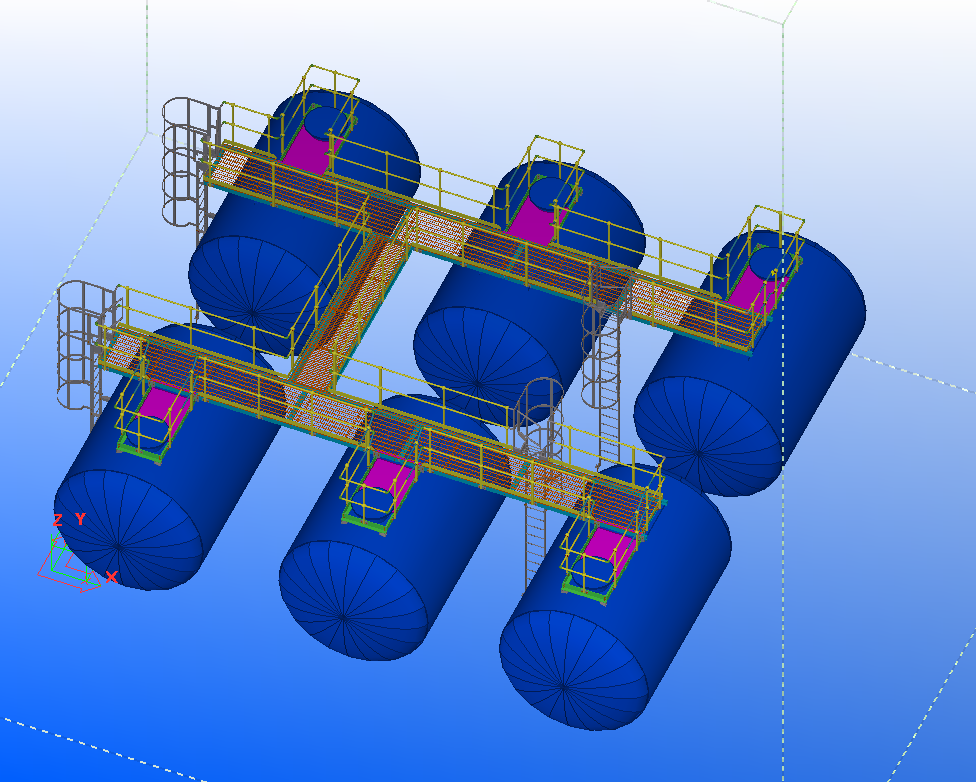

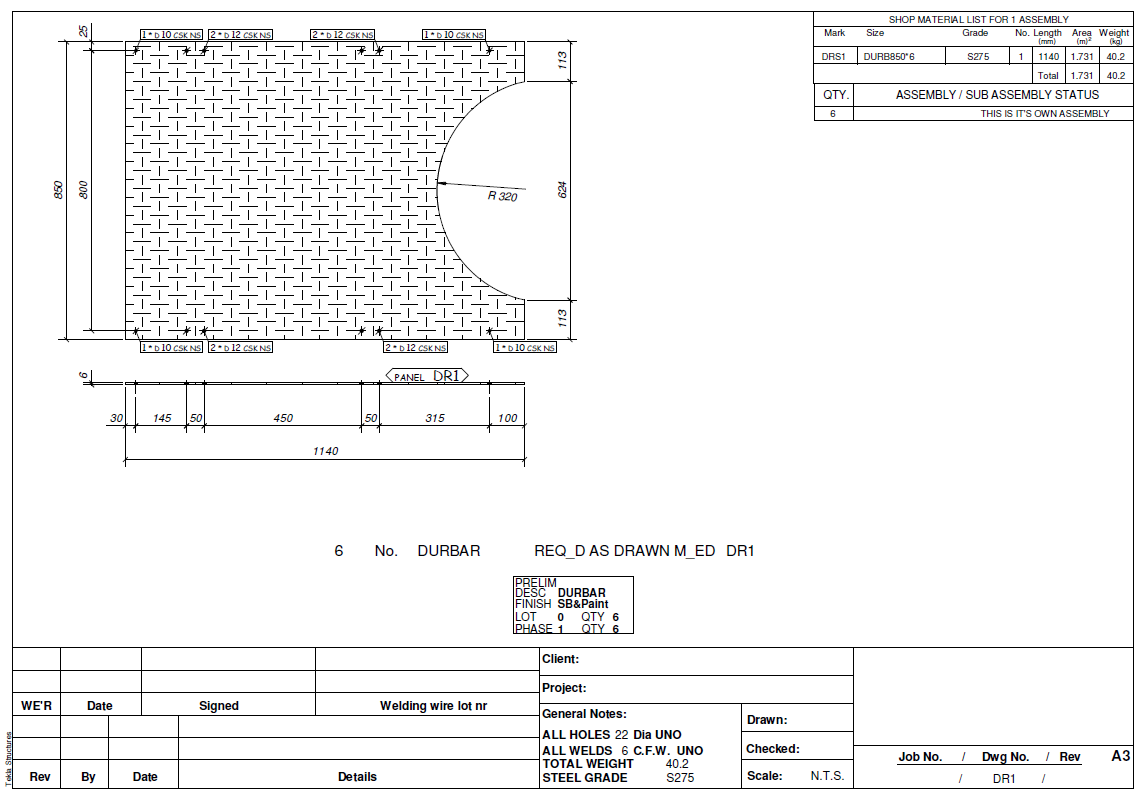

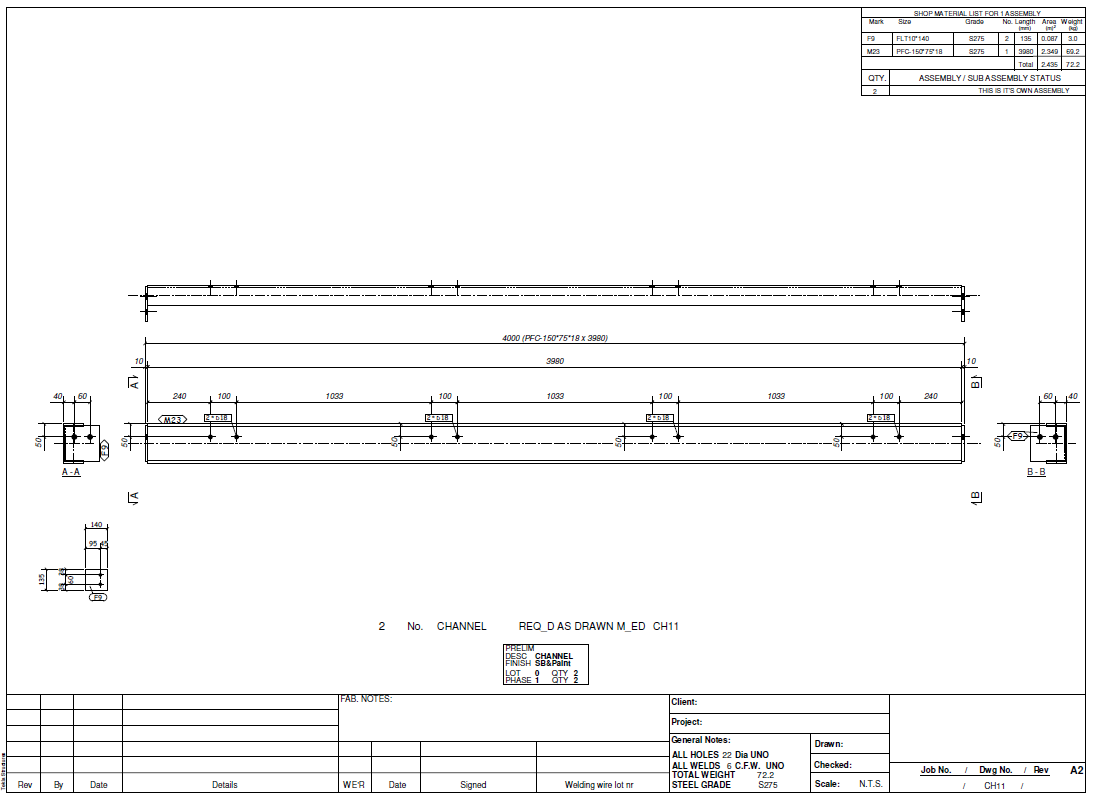

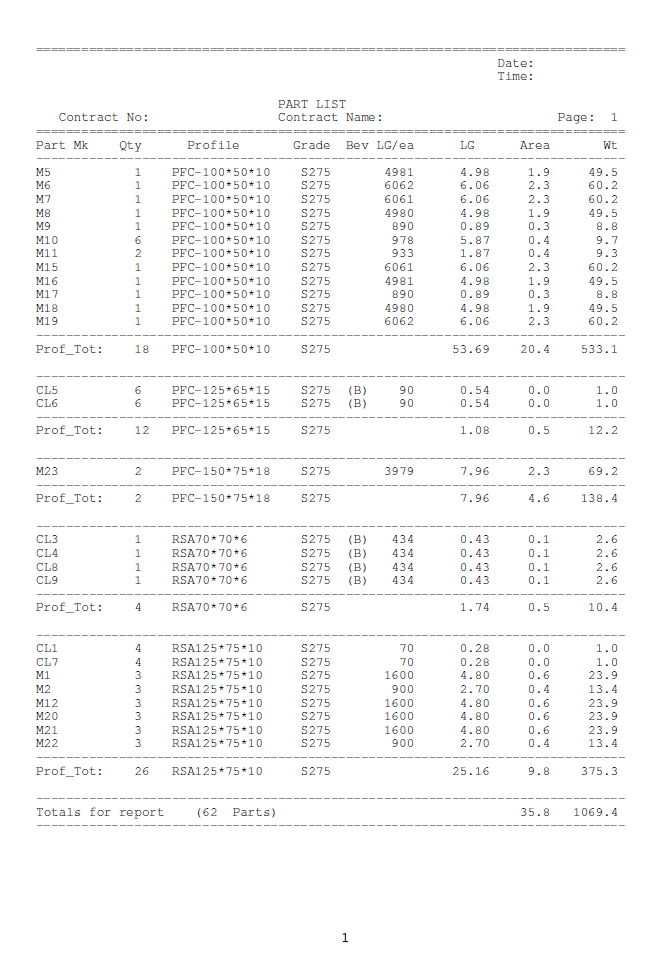

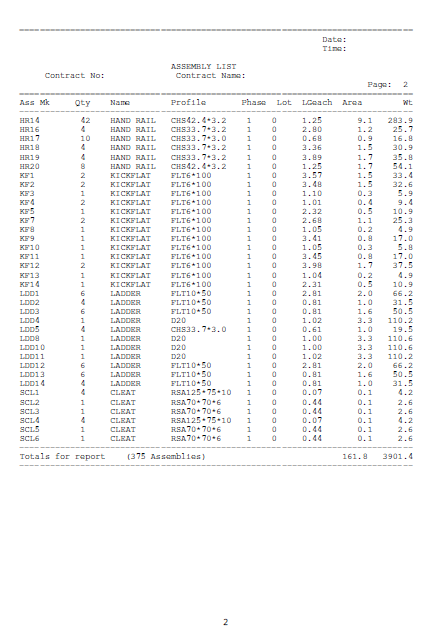

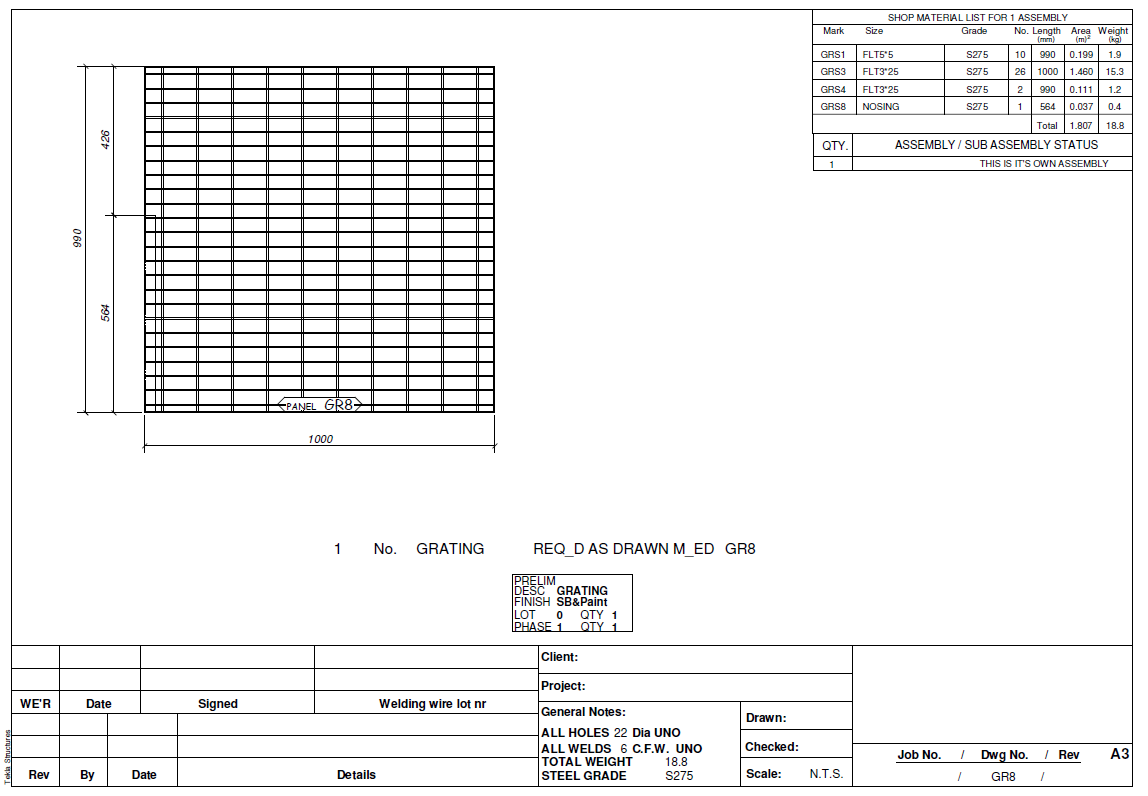

In the sample are shown simple access walkways here provided for tanks, consisting of two walkways tied with a third cross walkway approximately in the middle, 4off ladders providing access on and off the walkways, and handrails with kickflats around the walkways.
dimensions: app. 65X60m wide and 13m -height to the apex
dimensions: app. 45 x 30m wide and 9.5m -height to the apex
