Retail Unit

The building structure is a typical two bay duo-pitched roof with small attachment housing entrance and glassed lobby. App half of the building has a floor set in the middle of the height and acting as a storage area. Two staircases were provided as means of access on to the storage area.
  • dimensions: app. 65X60m wide and 13m -height to the apex
  • primary steelwork: app. 270 tonnes
  • cold rolled purlines and side rails: 30 tonnes

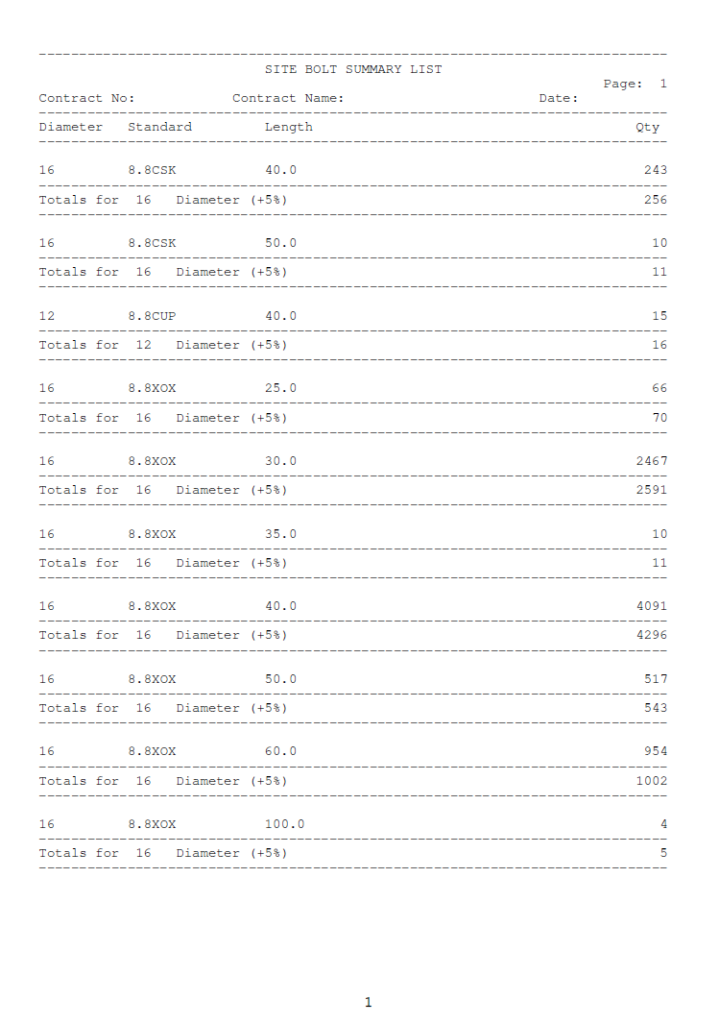

  • bolts used: 12500#
